Classic PVC 2 Multicore Cable 0.65mm² 19 AWG (5.75 AMPS)
Product Code: APVC1649B-5M
0.65mm² Classic PVC 2 Multicore Cable
Lengths available:
5 Meter Length up to 100M Roll
Specification-
Nominal current rating: 5.75 AMPS
No./size of conductors: 2 x 9/0.30mm
Conductor cross section: 2 x 0.65mm²

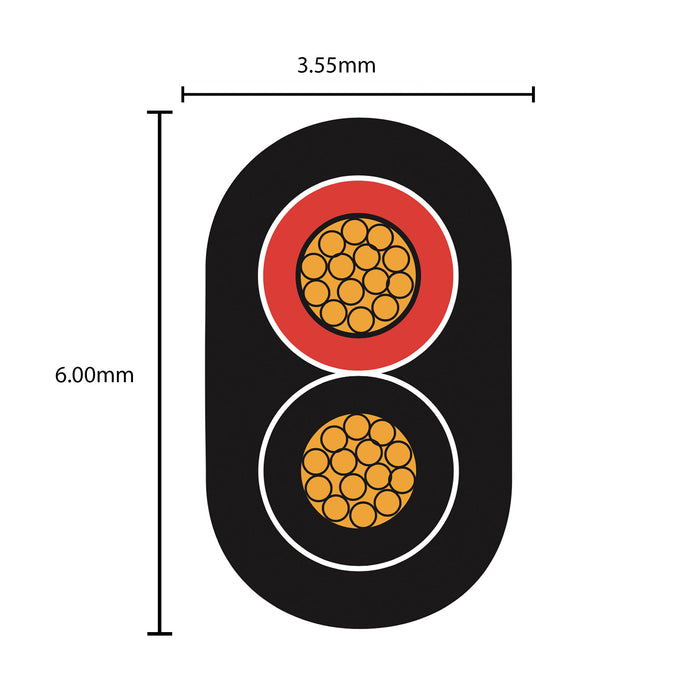

Maximum overall cable diameter: 6.00 x 3.55mm
Resistance per m at 20°C (per core): 0.0294Ω
Voltage: Suitable for 12v or 24v systems (Max 100v)
Conductor material: Plain Copper
Insulation material: PVC
Working temperature range: -30°C to +70°C
Chemical resistance: Petrol, Diesel, Lubricating Oils and Diluted Acids
