Classic PVC 7 Multicore Cable 0.65mm² 19 AWG (5.75 AMPS)
Product Code: APVC952B-5M
0.65mm² Classic PVC 7 Multicore Cable
Lengths available:
5 Meter Length up to 100M Roll
Specification-
Nominal current rating: 5.75 AMPS
No./size of conductors: 7 x 9/0.30mm
Conductor cross section: 7 x 0.65mm²

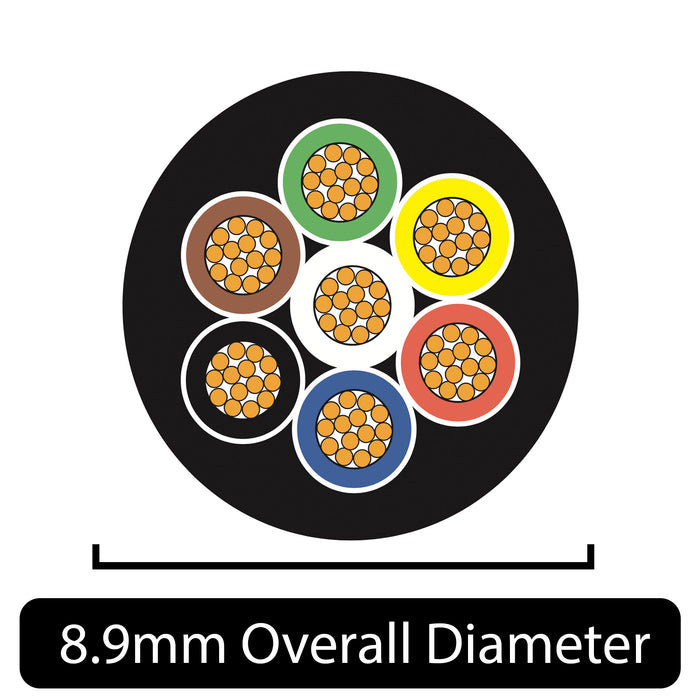

Maximum overall cable diameter: 8.9mm
Resistance per m at 20°C (per core): 0.0294 Ω
Voltage: Suitable for 12v or 24v systems (Max 100v)
Conductor material: Plain Copper
Insulation material: PVC
Working temperature range: -30°C to +70°C
Chemical resistance: Petrol, Diesel, Lubricating Oils and Diluted Acids
Original price
£8.95
-
Original price
£178.95
Original price
£8.95
£8.95
-
£178.95
Current price
£8.95
Standard Shipping
Order before 2pm for same-day dispatch. Sent via Royal Mail Tracked 24, with delivery typically within 1–2 working days.
