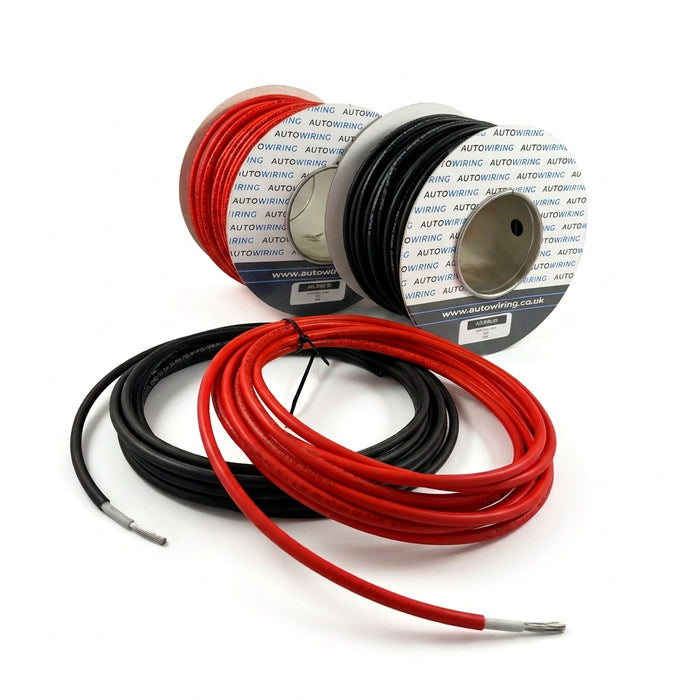

6mm² Solar PV Cable H1Z2Z2-K – Single Core Tinned Copper UV Resistant Solar Wire
6mm² Solar PV Cable H1Z2Z2-K – Single Core Tinned Copper UV Resistant Solar Cable
6mm² Single-Core Solar PV Cable with a nominal current-carrying capacity of up to 70A at 60°C, making it suitable for a wide range of photovoltaic and DC solar applications.
Manufactured to the European H1Z2Z2-K standard, this cable features a flexible, finely stranded tinned copper conductor and a durable UV-resistant black outer sheath, providing protection against sunlight, fading and environmental degradation.
Ideal for small to medium-sized solar installations, including systems fitted to campervans, motorhomes, caravans and boats.
Key Features:
- Voltage rating: 1500V DC
- Nominal current rating: 70A (up to 60°C - derate at higher temps)
- Nominal conductor cross sectional area: 6.0mm²
- Maximum overall cable diameter: 6.1mm
- Conductor material: Class 5 flexible tinned copper
- Conductor resistance @ 20°C: 3.39 Ω/km
- Temperature rating: -40°C to +90°C
