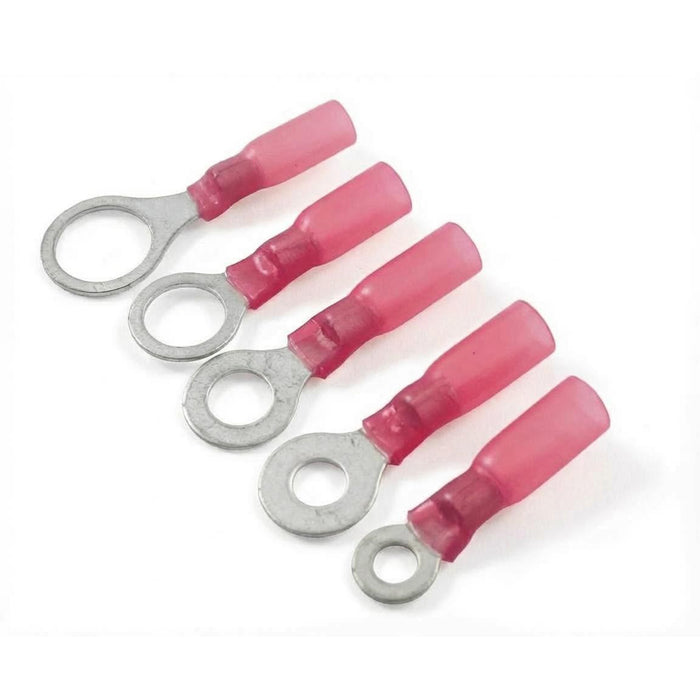

Heat Shrink Ring Crimp Terminals - 0.5-1.5mm² Cable (Red)

Heat Shrink Ring Crimp Terminals- 0.5-1.5mm² Cable (Red)

Premium, adhesive-lined heat shrink ring terminals designed for stranded automotive and marine cable. These terminals provide a durable environmental seal while also delivering effective strain relief to protect the cable.

After crimping, apply heat using a heat gun or micro torch to shrink the tubing over the cable until the internal adhesive melts and flows. This creates a secure, water-tight seal at the cable entry point and ensures excellent resistance against pull-out, helping to maintain a strong, long-lasting connection.

Insulation Material: High density polyethylene
Conductor Material: Tinned Copper
Cable Size: 0.5 - 1.5mm² (Red)
Max Operating Temperature: 135°C
Min. Shrinkage Temperature: 60°C
Voltage Rating: 600V Max
Shrink Ratio: 3:1

Available in 4.3, 5.3, 6.4, 8.4 and 10mm hole diameters.
